View Java Source In Eclipse for Windows

As my journey into java development continues, I found an opportunity to investigate core java source code. My interest was the method String.contentEquals(). Curious in the difference between String.equals() and String.contentEquals(), look to java source code.

UPDATE: View Java Source In Eclipse for Windows – The Easy Way

Please note, I am not attempting to compile my own jdk library.  Information for compiling the jdk from scratch can be found here http://openjdk.java.net/. Also the openjdk will contain more source code than Oracle JDK. http://en.wikipedia.org/wiki/Free_Java_implementations#Sun.27s_November_2006_announcement

Finally there are sites like http://www.grepcode.com/ that you can view source there if you like.

The following steps outline how I load java source code into eclipse for easy viewing.

Requirements:

javajdklinux

Download the .gz file.  In my environment I am running x64.

The reason I am using the linux build is because the jt.jar file contains a few classes that don’t exist in the windows build.

javajdklinuxdownload

Right click on .gz file > 7-Zip > Extract Here

Right click on non .gz file > Extract Here

javajdklinuxextract

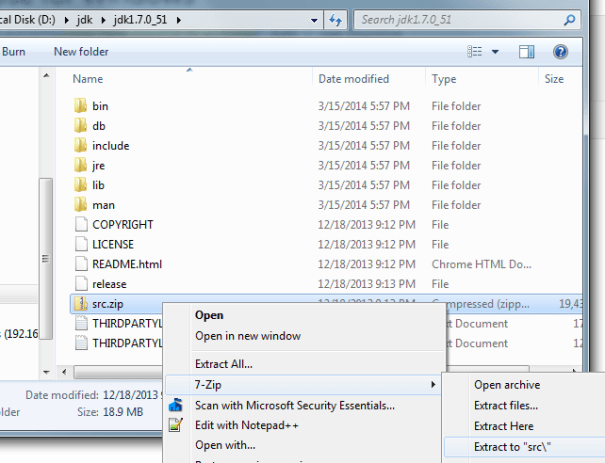

A new folder will be created, browse to new folder, locate src.zip.

Right click > 7-Zip > Extract to “\src”

javajdklinuxextractsrc

A src folder will be created.

javajdklinuxextractsrcfolder

Next, open your eclipse and create a new java project. The new java project should have a src folder.

eclipsesrcview

Right click on the eclipse src folder > Properties, take note of the Location.

eclipsesrclocation

Copy the contents of the extracted jdk src folder into the src of your java project.

In my example, I have D:\jdk\jdk1.7.0_51\src > C:\Lab\JavaSource\src

eclipsesrccopy

Refresh your project in eclipse.

eclipsesrcproblems

You will notice right away of access restriction build problems.  Lets resolve these problems.

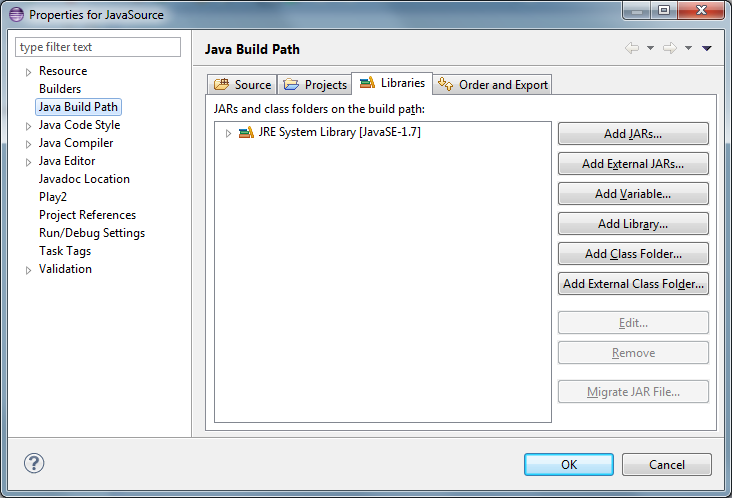

In eclipse, right click on your project > Properties > Java Build Path > Libraries

eclipseslibraries

Click on the JRE System Library > Remove

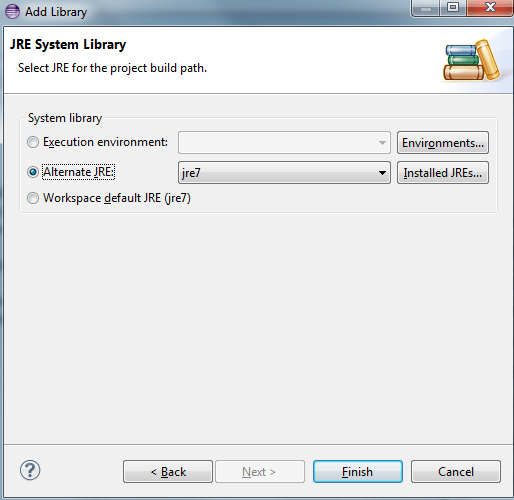

Click Add Library > JRE System Library > Alternate JRE > Finish > OK

eclipsesaltjre

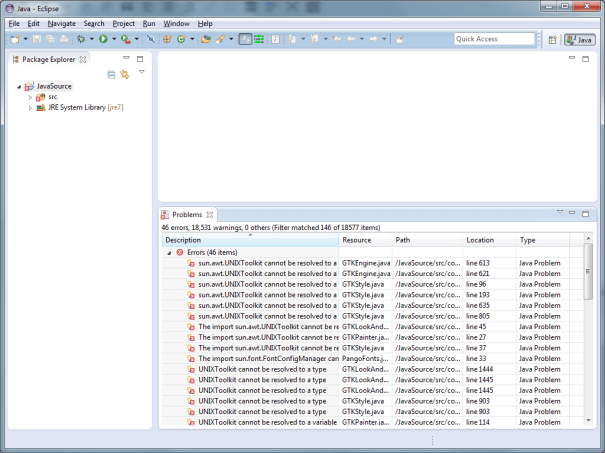

You will notice we still have a few problems.

eclipsesrcproblems2

This is the reason I am using the linux build, the jt.jar file contains the UNIXToolkit class that doesn’t exist in the windows build.

Lets resolve these problems

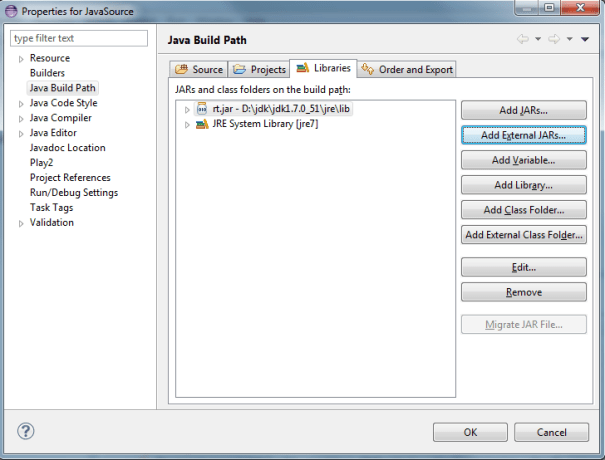

Right click on your project > Properties > Java Build Path > Libraries > Add External JARs…

Locate the rt.jar from your jdk download.  My locations was \jdk1.7.0_51\jre\lib.

Click OK

eclipsesrcproblems3

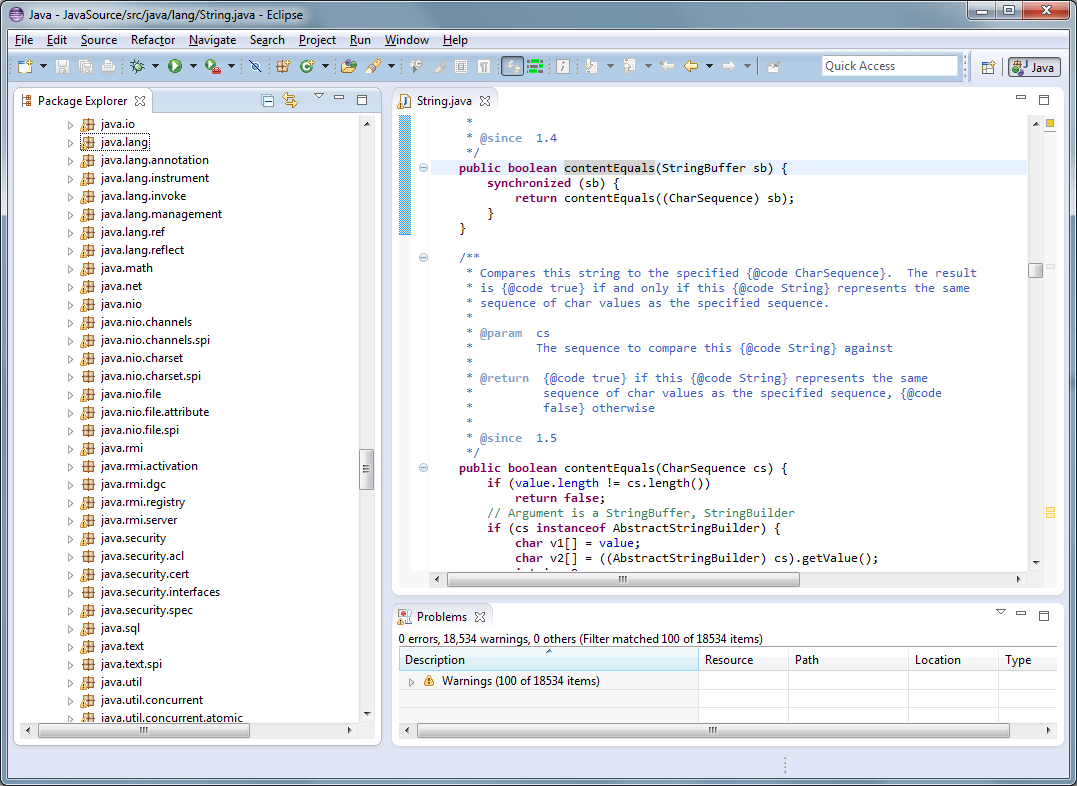

There should be no more problems, you are now able to inspect java source in eclipse editor.

eclipsejdksource

Posted in Java
